Mounted points - cylindrical type CAST EDGE

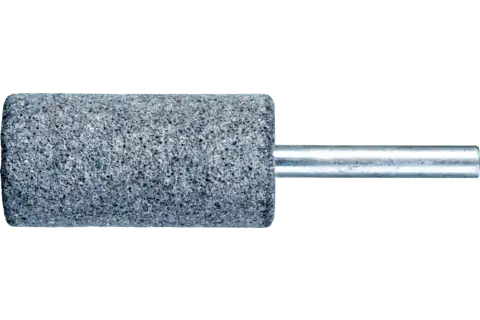

Vitrified Mounted Point, CAST EDGE, 1″ x 2, 30 Grit, W222, SiC, 1/4″ Shank

EDP:: 34218

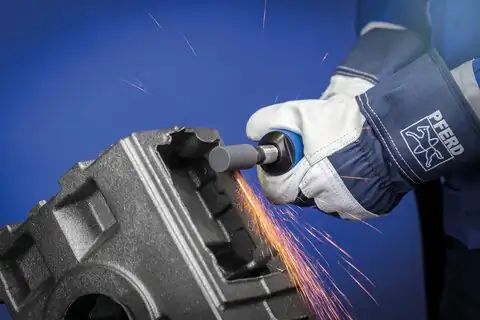

Vitrified Mounted Point, CAST EDGE, 1″ x 2, 30 Grit, W222, SiC, 1/4″ Shank 2

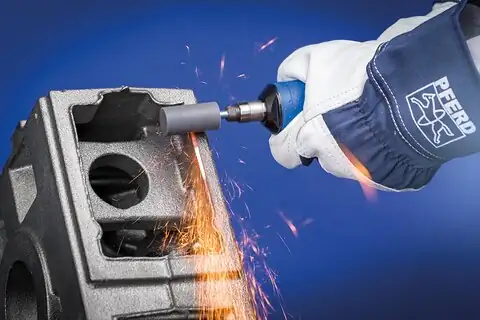

Vitrified Mounted Point, CAST EDGE, 1″ x 2, 30 Grit, W222, SiC, 1/4″ Shank 3

Technical data

Find a distributor

Technical information

Vitrified Mounted Point, CAST EDGE, 1″ x 2, 30 Grit, W222, SiC, 1/4″ Shank

Item number product.detail.hint.sku: 35482303
Dia. external: 1 Inch
Dia. external: 25 mm
Dia. shank: 1/4 Inch
Dia. shank: 6.35 mm
EDP no.: 34218
Grit size: 30
Length, shank: 1-1/2 Inch
Length, shank: 40
PFERD TOOLS type: W 222 6,3 CU 30 R5V
RPM max. 1 inch overhang: 12370 RPM
RPM max. 1-2 inch overhang: 15900 RPM
RPM optimum 1-2 inch overhang: 15900 RPM
Shape: W 222
Version: CAST EDGE
Width: 1 Inch
Width: 25 mm
Packaging unit: 10 pieces

Description

The cylindrical shape is ideal for grinding bores, radii and contours.

The CAST EDGE type is designed to work with high cutting speeds for edge grinding and grinding out sharp burrs, sand inclusions, and scale in grey and nodular cast iron.

Its main applications include removal of sharp burrs and grinding out sand contamination and metal contamination on cast material parts.

Advantages

Highly dimensionally stable due to the high bond content.
Cost-effective due to high edge stability, even on low-speed power tools.

Recommendations for use

CAST EDGE mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 1/2".

Workpiece materials: Annealed cast iron; Casting scale with sand contamination and metal contamination; Grey/nodular cast iron (GG/GJL, GGG/GJS)

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Compatible power tools: Flexible shaft drive; Straight grinder
