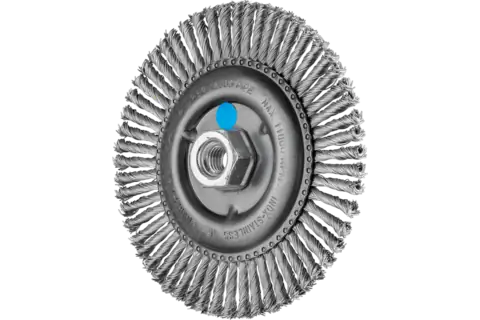

PSF Stringer Bead Wheel Brush 6" Dia .020 Stainless Steel 5/8-11" Thread

Technical information

Item number product.detail.hint.sku: 43740039
Dia. external: 6 Inch
Dia. external: 150 mm
Dia. filament material: .020 Inch
Dia. filament material: 0.5 mm
Dia. thread: 5/8-11
EDP no.: 764022
Filament material: Stainless steel wire (INOX)
Max. RPM: 9000 RPM
Mounting system: Thread
Number, knots: 40 pcs.
Packaging: Industrial packaging (PSF)
RPM, optimum: 4.500 - 9.000 RPM
Trim length: 1-1/4 Inch
Trim length: 32 mm
Width: 3/16 Inch
Width: 6 mm
Packaging unit: 5 pieces

Description

Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction.

In order to fulfill the requirements for brushing stainless steel (INOX), PFERD TOOLS produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD TOOLS brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) is temperature-resistant up to 850 °F.

Advantages

Aggressive brushing action due to tightly-twisted wire knots.
Extra-slim design allows access to hard-to-reach areas such as root weld seams.
Packaged for retail.
Very corrosion-resistant.

Recommendations for use

Please observe the recommended rotational speeds.
For best performance, use on powerful angle grinders.

Workpiece materials: Aluminum; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing heat discolouration; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Compatible power tools: Angle grinder
