High-performance tungsten carbide burs, EDGE cut, Conical counterbore - 1/8 radius

Bearing Carbide Bur Edge Cut System 1/8" Radius 1/8" Radius 5/8" x 1/8", 1/4"

EDP:: 25149

Bearing Carbide Bur Edge Cut System 1/8" Radius 1/8" Radius 5/8" x 1/8", 1/4" 2

Bearing Carbide Bur Edge Cut System 1/8" Radius 1/8" Radius 5/8" x 1/8", 1/4" Youtube

Technical data Change variant

Distributors-Search

Choose options

Dia. external

5/8 Inch

Length, construction

5/16 Inch

PFERD TOOLS type

V 1612/6,35 EDGE R3.0 ECS V 1612/6,35 SP EDGE R3,0

Reset Filter

Technical information

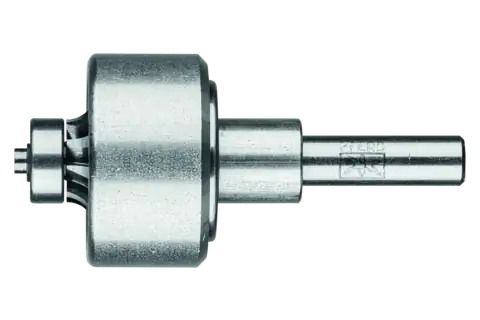

Bearing Carbide Bur Edge Cut System 1/8" Radius 1/8" Radius 5/8" x 1/8", 1/4"

Item number product.detail.hint.sku: 21725149
Cut: EDGE
Dia. ball bearing: 0.394 Inch
Dia. ball bearing: 10 mm
Dia. external: 5/8 Inch
Dia. external: 16 mm
Dia. shank: 1/4 Inch
Dia. shank: 6.35 mm
Dia. sleeve: 1 Inch
Dia. sleeve: 25 mm
EDP no.: 25149
Length, construction: 5/16 Inch
Length, construction: 24 mm
Length, cut: 1/8 Inch
Length, cut: 3 mm
Overall length: 2-3/64 Inch
Overall length: 52 mm
PFERD TOOLS type: V 1612/6,35 EDGE R3.0 ECS
RPM, grey cast iron, white cast iron: 12.000 - 18.000 RPM
RPM, hard non-ferrous metals: 5.000 - 7.000 RPM
RPM, hardened, heat-treated steels over 370 HV (38 HRC): 12.000 - 15.000 RPM
RPM, high-temperature-resistant materials: 5.000 - 9.000 RPM
RPM, soft non-ferrous metals: 12.000 - 18.000 RPM
RPM, steels up to 370 HV (38 HRC): 12.000 - 18.000 RPM
Radius corner design: 0.118 Inch
Radius corner design: 3 mm
Packaging unit: 1 piece

Description

EDGE cut tungsten carbide burs have been specifically developed for precise work on edges. The special design allows the bur to run directly along edges without damaging the workpiece. Exact edges can be created in a single step - with either defined chamfers of 30° or 45°, or to a defined radius of 1/8". Rounding edges is a precautionary measure against corrosion according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198).

Concave radius bur for producing precise rounded edges. Cannot be re-sharpened. Designed for producing and finishing edges with an 1/8" outer radius."

The EDGE Cutting System includes EDGE cut burs and a special guide sleeve that can be mounted into a conventional power tool collet to ensure optimal guidance during light deburring work.

Advantages

Special design allows for precise handling.
Safe and comfortable use.
Exact edge shapes can be created in a single step.
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Improved guidance.
Can be used with any conventional straight grinder.
Bur is interchangeable.

Recommendations for use

Use the burs counterrotationally for quick stock removal. For a fine surface finish, run the bur back over the edges in the same direction of rotation.
If possible, use burs with the EDGE cut with the PFERD TOOLS compressed-air straight grinder PG 3/210 with the matching guide sleeve EFH PG 3/210.
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.

Ordering notes

The EDGE Cutting System (ECS) bur can be reordered and replaced if required. Matching bur: EDP 25150.

Workpiece materials: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Bronze; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard non-ferrous metal; Steel; Steel, cast steel; Steels up to 220 HV (< 95 HB); Steels up to 370 HV (< 38 HRC); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Chamfering; Deburring; Milling; Rounding; Working on edges; Working on edges (chamfering, rounding)

Compatible power tools: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends EDGE cut burs for preventing fatigue, saving resources, and producing excellent work.
